8222

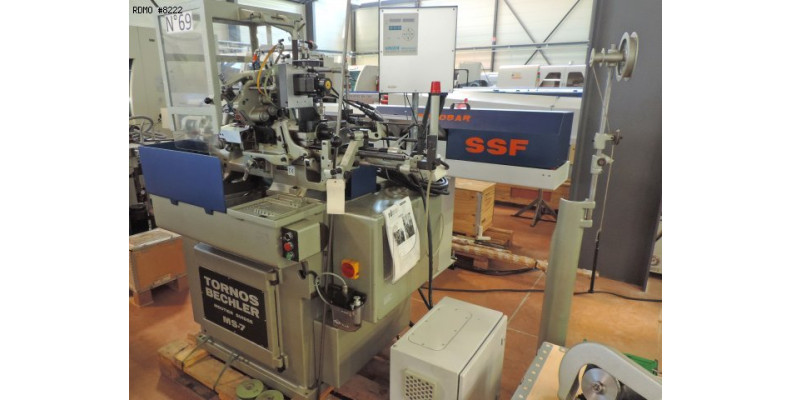

Marca : TORNOS
Modelo : MS-7
Año :
N° Serie : 2385
8222
Marca : TORNOS
Modelo : MS-7
Año :
N° Serie : 2385

Características & Equipamiento

Características
- Spindle speed : 10.000 [rpm]
- max. bar diameter : 10 [mm]
- number of turning tools : 5
- headstock stroke : 60 [mm]
- three-phase supply : 220 [V]
- dimensions : 1440 x 900 [mm]
- weight : 700 [kg]
Equipamiento

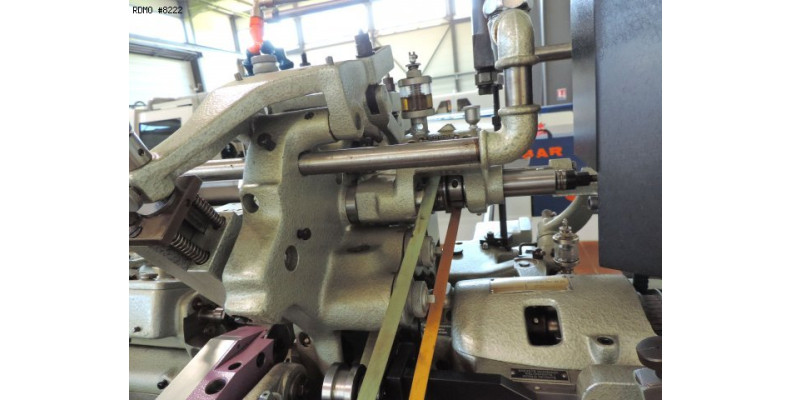

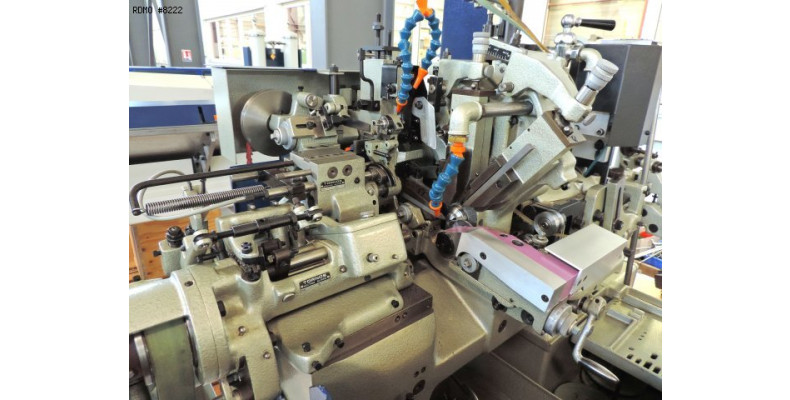

- Control VNSA WinVario for simple and controlled headstock stops
- Simple headstock 6-AD n°54928 with electronically directed motor (variostop).
- Bar feeding tube with push-bars and complete sheaving foot
- Drilling-tapping device with 3 spindle 13-Y n°5690
- Milling device 26-FA mounted on drilling-tapping device 13Y for milling 6 faces
- Polygon attachment Piranha 46 (new)
- Transporter TORNOS 34-DA n°00541 (collet body of 8) cable tightening
- Counter-driller 1 spindle 12-AD n°027039 with motor
- Double splitting device TORNOS 14-CA (new) with motor
- Automatic central greasing

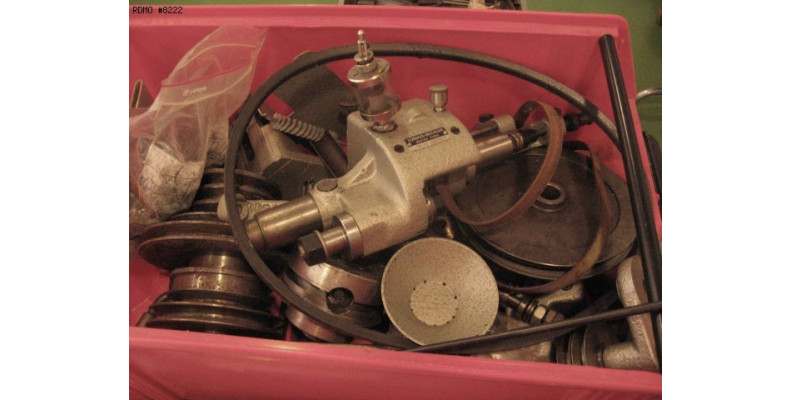

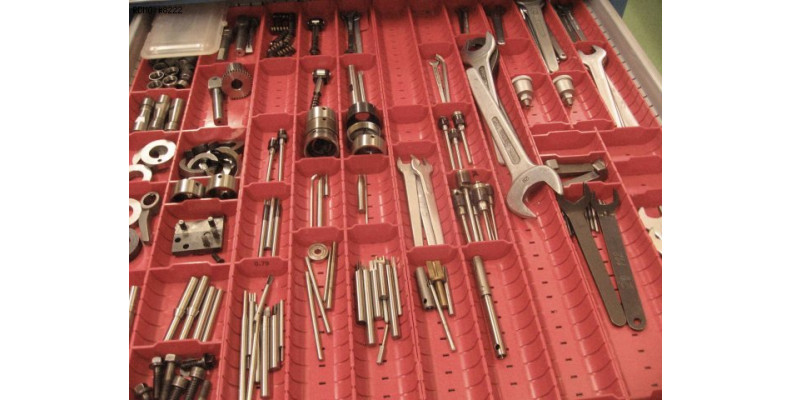

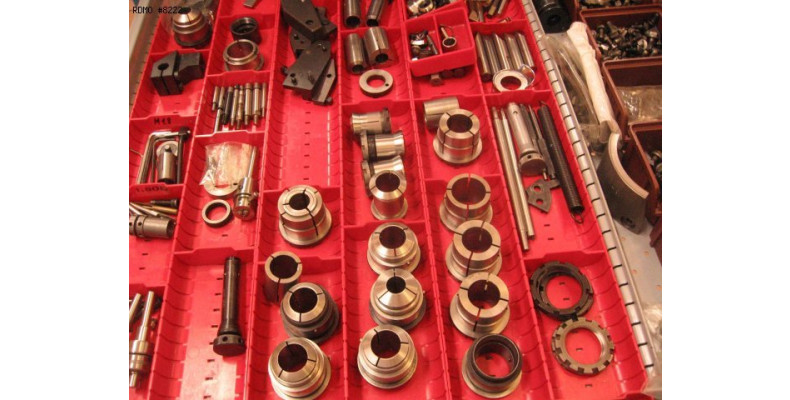

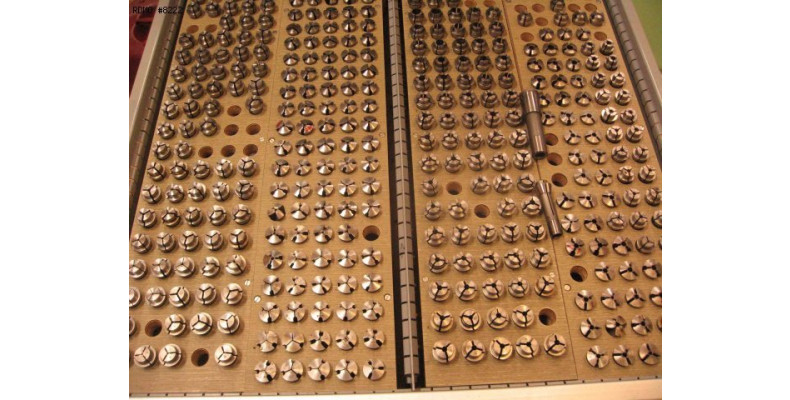

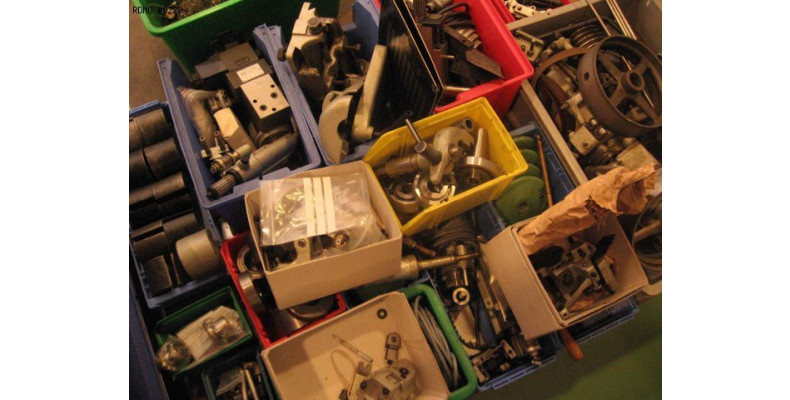

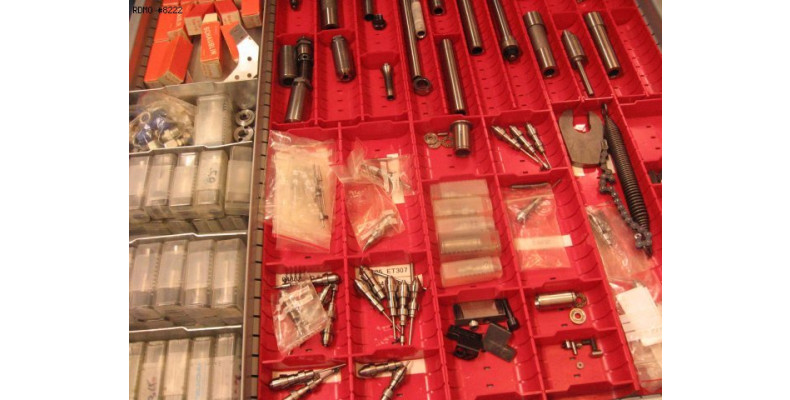

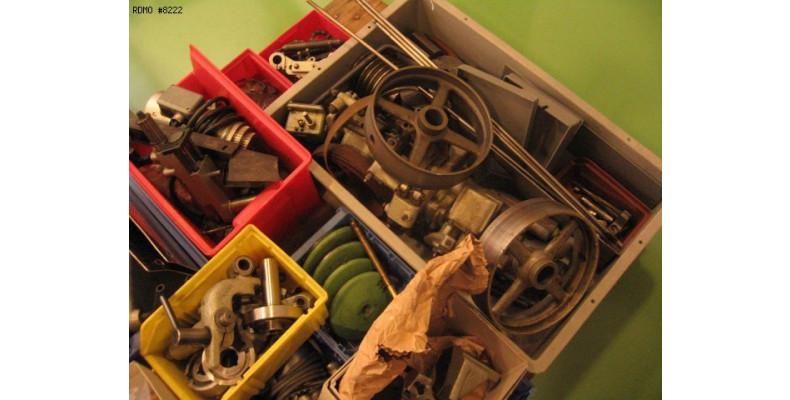

- Numerous accessories, collets and sleeves (same as on photos)

Descripción

The machine was entirely remade including the paint in 2014. It was put in service in July 2014.

Para poder ver este vídeo, primero tienes que autorizar el uso de cookies de la web de youtube.

Configure
La máquina se ha añadido al presupuesto

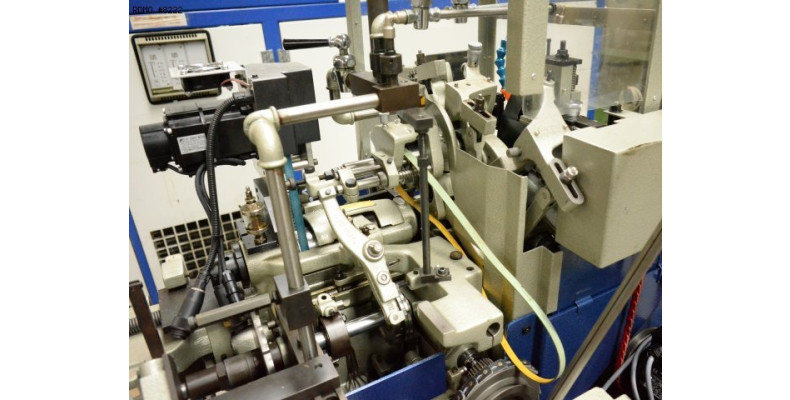

TORNOS MS-7
