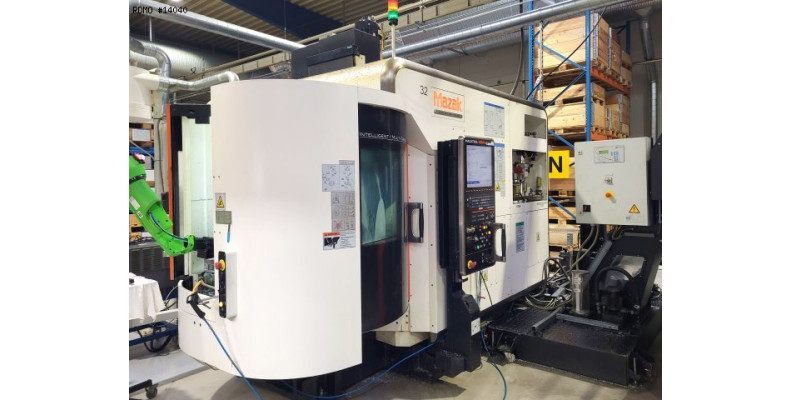

MAZAK VARIAXIS i-500 5 ejes

- Number of axes : 5
MILLING SPINDLE
- Tool holder type : BT40
- Spindle speed : 18.000 [rpm]
- Spindle power : 35 [kW]

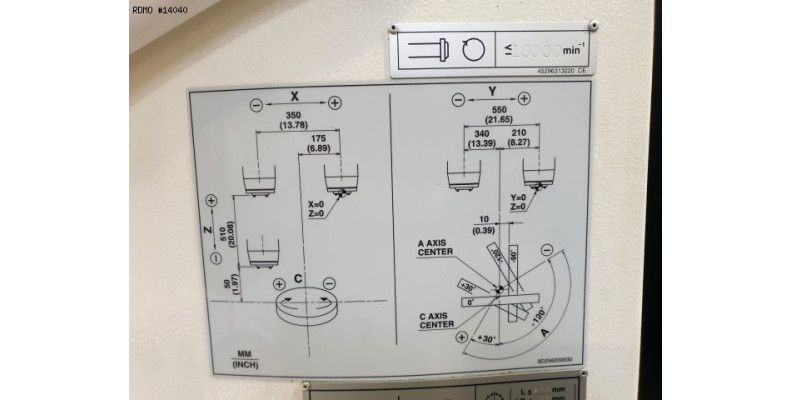

LINEAR AXES
- Travels on X/Y/Z axes : 350 x 550 x 510 [mm]
- Rapid traverses rates (X/Y/Z) : 60 / 60 / 56 [m/min]
- Cutting feed rate : 56.000 [mm/min]
A ROTARY AXIS
- Travel : -120 / +30 [°]
- Indexing precision : 0,001 [°]
- Cutting feed rate : 50 [rpm]
C ROTARY AXIS
- Travel : 360 [°]
- Indexing precision : 0,001 [°]
- Cutting feed rate : 50 [rpm]
TOOL CHANGER
- Auto. Tool Changer type : Loading arm
- Tool magazine capacity : 80

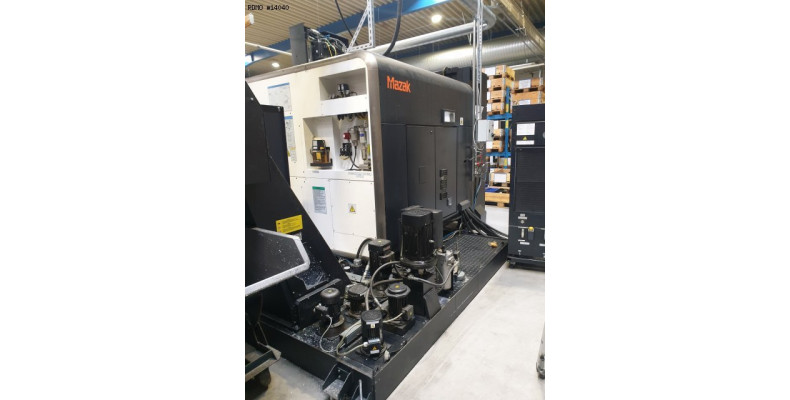

PALLET CHANGER
- Pallet size : 400 x 400 [mm]
- Pallets number : 2
- Maximum weight upon table : 300 [kg]
- Max. turning diameter : 500 [mm]
- Max. worpiece height : 350 [mm]
POWER SUPPLY
- Supply voltage : 400 [V]
- Total installed power : 56,5 [kVA]
WEIGHT & DIMENSIONS
- Machine floor space : 3.600 X 2.400 [mm]
- Machine height : 2.975 [mm]
- Machine weight : 11.300 [kg]
MACHINE HOURS
- Number of hours under power : 44.637 [h]
- Number of working hours : 31.872 [h]

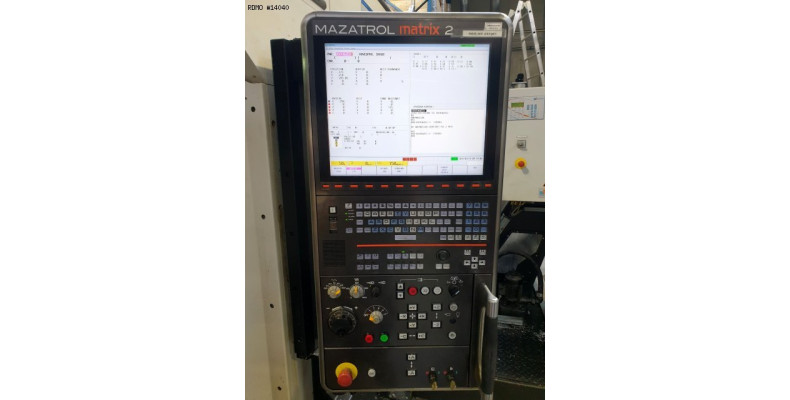

- CNC : Mazatrol Matrix 2

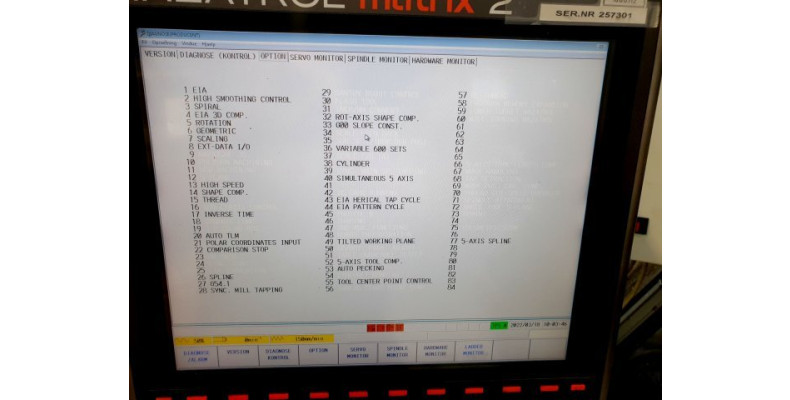

- Option : 5 axis machining package
- Interface : PCMCIA / RJ45 / USB
- Rigid tapping
- 3 colors status lamp
- COOLANT TANK

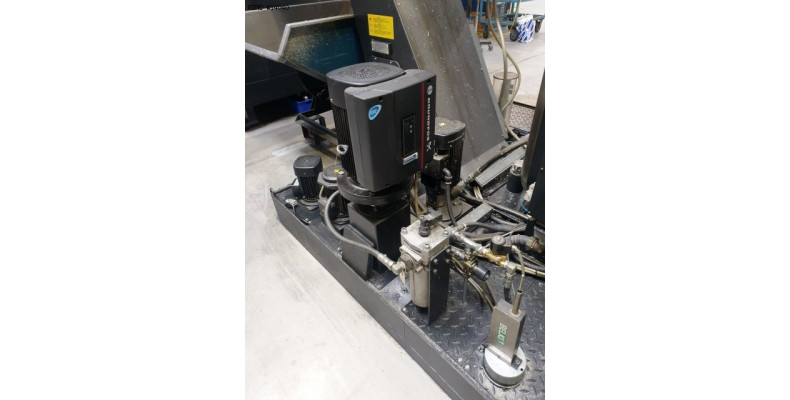

* with high-pressure pump : 30 [bars]
- Coolant through spindle

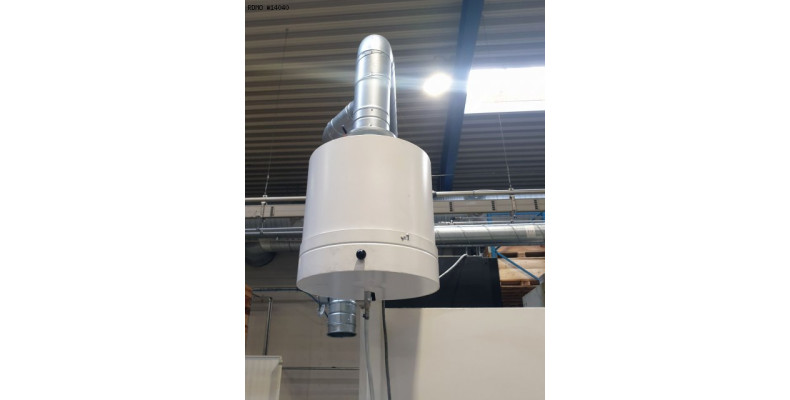

- Oil mist extractor

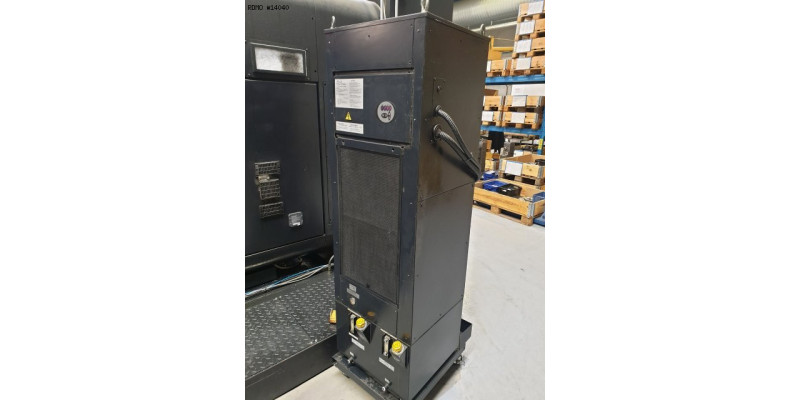

- Spindle cooling unit

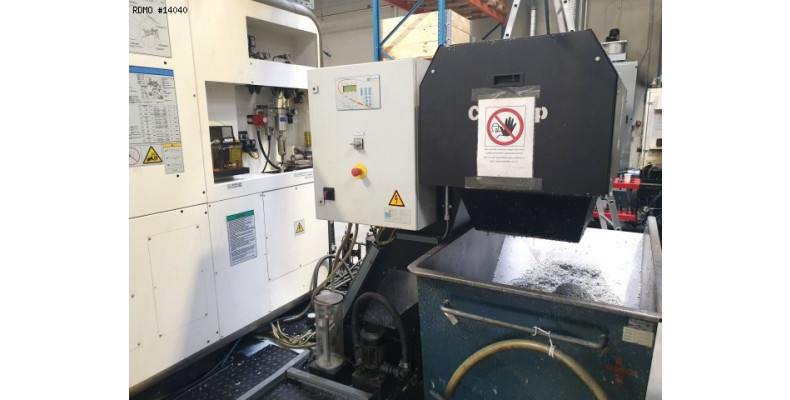

- Chips conveyor : MAYFRAN Consep 2000
- Workpiece probe : Renishaw (preparation only)
