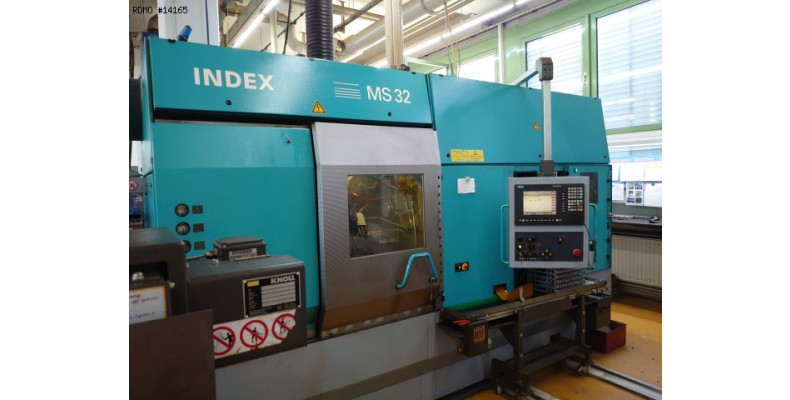

- Number of spindles: 6 independent with C axis
- Bar capacity: 32 [mm]
- NCU1 :
* Unit of slides 1.1: X and Z axes managed by NC
* Unit of slides 2.2: X and Z axes managed by NC
* Unit of slides 3.1: X and Z axes managed by NC
* Unit of slides 3.2: NC-controlled X and Z axes
* Unit of slides 1.4: NC-controlled X and Z axes
* Unit of slides 2.4: NC-controlled X and Z axes
* Unit of slides 3.4: X and Z axes managed by NC
-NCU2 :
* Unit of slides 4.1: X, Y and Z axes managed by NC
* Unit of slides 4.2: X and Z axes managed by NC
* Unit of slides 5.1: X and Z axes managed by NC
* Unit of slides 5.2: NC-controlled X and Z axes
* Unit of slides 6.1: NC controlled X and Z axes + stroke extender
* Unit of slides 6.2: NC-controlled X and Z axes
* Unit of slides 4.4: X and Z axes managed by NC
* Unit of slides 5.4: X and Z axes managed by NC
* Z 6.3: Backworking spindle
- Power supply : 50 [Hz] - 400 [V]
- Machine weight : 9600 [kg]
Equipamiento

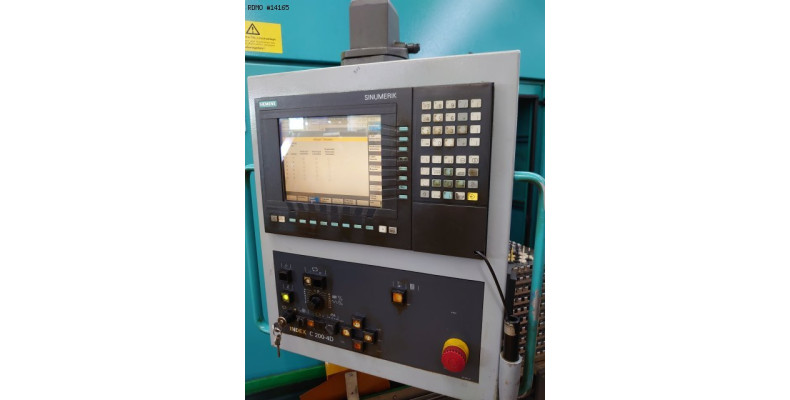

- CNC : Siemens Sinumerik
- Double NCU
- Chip conveyor
- Coolant tank

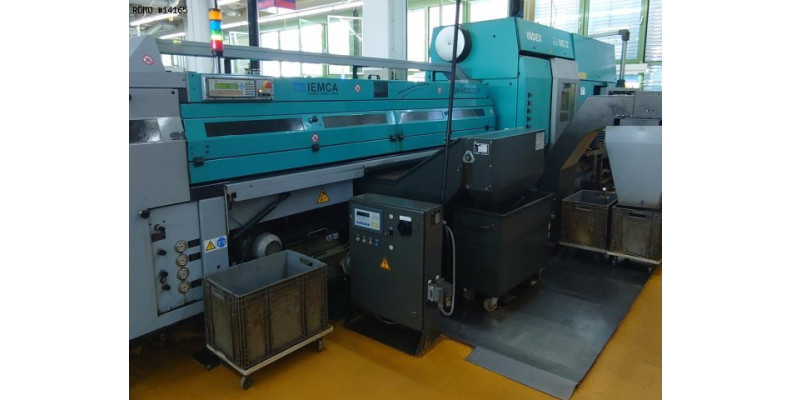

- Bar loader : IEMCA SIR MS32/33P
- Artis tool monitoring
Descripción
Machine revised in 2019
Esta máquina-herramienta está vendida. Seguramente que tenemos modelos similares disponibles
